- DUT Tuning Range: 10 MHz – 6 GHz(base), 12 GHz, 20 GHz
- Measurement Floor
- Internal LO Mode: <- 180 dBc/Hz
- Internal LO Bypass Mode: <- 185 dBc/Hz
- External LO Mode: <- 190 dBc/Hz
- Measurement Speed (per correlation): <1s (1kHz – 40 MHz), <15s (1Hz – 40 MHz)
- Measurement Offset: 0.1Hz to 40 MHz
- Warranty: 3 years
Analyzers
Richiedi Informazioni

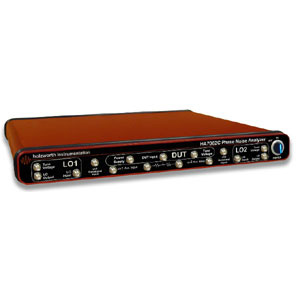

Holzworth HA7062C Phase Noise Analyzer, 10 MHz – 6GHz
The HA7062C inherits the same ANSI Z540 calibrated accuracy as its predecessor; as well as industry leading data acquisition speeds, ease of use, and extremely high reliability. The additional features that come with revision C include: expanded measurement offsets to 40MHz, input splitter bypass ports for higher channel – channel isolation, and independent baseband input ports.
