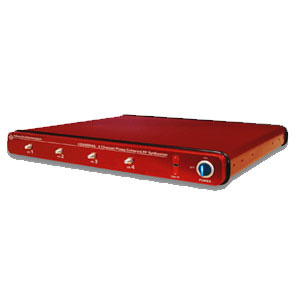

Holzworth HSX Series Multi-Channel Synthesizers

Holzworth HSX Series Multi-Channel Synthesizers

The HSX Series was developed to be the cleanest CW sources available. Phase noise performance, spurious rejection and harmonic /sub – harmonic rejection were the primary focus points during the development cycle. The result is an extremely high performing, broadband CW source.

holzworth
File-PDF-iconEnglish Version
Category: Tags: ,
Richiedi Informazioni
Bandwidth
Output Power
Phase Noise (at max. frequency)
 Harmonics Spurious
10Hz OS 10kHz OS 10MHz OS
10MHz to 6GHz +20dBm to -110dBm -77dBc/Hz -128dBc/Hz -140dBc/Hz -40dBc -85dBc
10MHz to 12GHz +20dBm to -110dBm -71dBc/Hz -122dBc/Hz -134dBc/Hz TBD -85dBc
10MHz to 20GHz +20dBm to -110dBm -67dBc/Hz -118dBc/Hz -130dBc/Hz TBD -85dBc

Bandwidth
Output Power
Phase Noise (at max. frequency)
 Harmonics Spurious
10Hz OS 10kHz OS 10MHz OS
10MHz to 6GHz +20dBm to -110dBm -77dBc/Hz -128dBc/Hz -140dBc/Hz -40dBc -85dBc
10MHz to 12GHz +20dBm to -110dBm -71dBc/Hz -122dBc/Hz -134dBc/Hz TBD -85dBc
10MHz to 20GHz +20dBm to -110dBm -67dBc/Hz -118dBc/Hz -130dBc/Hz TBD -85dBc
