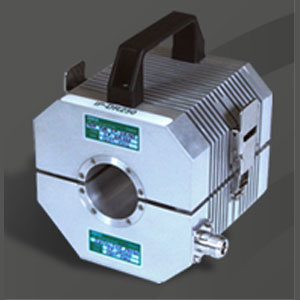

Prâna IP-DR250 Bulk Current Injection Probe, 500W


  • Bulk Current Injection Probe
  • Broadband (instantaneous single band) : 10 kHz – 400 MHz
  • Typical power: 500 W CW
  • Reliable, efficient and robust
  • 3 years standard warranty

MAINTENANCE :

  • Rapid diagnostic
  • Minimal downtime
  • Contract for preventive and corrective maintenance available

APPLICATIONS :

  • EMC standars covered:-DO 160 D
    • Mil STD 461
    • Automotive standards: PSA, Renault, Ford, Daimler Chrysler…
    • ISO 11452-4
    • SAE J1113-4

Prana Broadband Power Amplifiers
File-PDF-iconEnglish Version
Richiedi Informazioni
  • Frequency Range : 0.01 – 400 MHz
  • Window diameter : 43.8 mm
  • Outside dimensions (h x w x d) : 120 mm x 126.5 mm x 125 mm
  • RF input connector : Type “N” Female
  • Weight : 5.3 kg
  • Fastening : 2 Clips
  • Maximum input Power : 500 W
  • Input Power (with respect of core temperature = 80°C) : 150 W – 60 min / 300 W – 30 min / 500 W – 15 min
  • Maximum temperature on the core surface (do not exceed this temperature) : 80 °C
