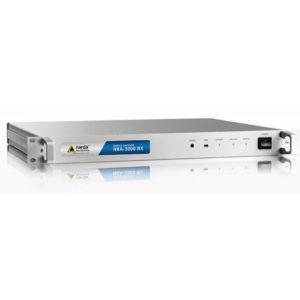

Product features
- Frequency resolution (RBW) from 10 Hz to 20 MHz
- 50 dB input attenuator switchable in 1 dB steps
- Display range from -150 dBm to +21 dBm (RBW = 10 Hz)
- DANL < -155 dBm/Hz
- < 1.2 dB level measurement uncertainty at 15°C to 30°C
- High resolution spectrum with up to 600,000 measurement points
- Detector for fixed resolution (Bins) with +Peak, -Peak, or RMS detectors for data compression
- ASCII or binary data transmission
- Multi-Channel Power option: Simultaneous level measurement in up to 500 freely-definable channels
- Level Meter (Zero Span) option: Resolution bandwidths from 100 Hz to 32 MHz
- Scope and I/Q Data: Real time analysis 100 Hz – 32 MHz in the time domain, I/Q data up to 32 MHz CBW (blockwise); streaming up to 400 kHz CBW
Specifications
- Frequency range: 9 kHz – 3 GHz
- Measurement speed: up to 12 GHz/s
- Power consumption: < 20 W
- Operating temperature: -10° to +50° C
- Audio output: AM, FM, USB, LSB, CW
- Reference input: 10 MHz
- Dimensions: 19” x 1.75” x 14.3” (482 x 45 x 362 mm)
- Weight: < 5 kg
