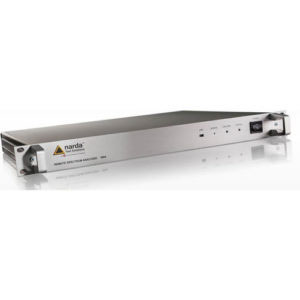

Remote controlled spectrum and signal analyzer for integration into satellite communications systems in teleports, control centers (broadcasting, ATC, maritime, etc.), DSNG vehicles and trailers.
The LNB Control variant of the NRA-3000 generates all the standard control voltages for switching the LNB to low band or high band and to horizontal or vertical polarization. Remote control of the LNB Control feature is integrated into the standard command set of the analyzer, making it unnecessary to link any further equipment into the control software or the signal path. The LNB Control for the NRA-3000 also does not use any additional space in the rack.
The NRA can be integrated into practically any measurement environment thanks to its plain text remote control commands in ASCII and Ethernet interface. Large quantities of data can be transmitted rapidly in binary format.
LNB control hardware offering remote power supply and remote access built into the NRA basic unit
Frequency resolution (RBW) from 10 Hz to 20 MHz
50 dB input attenuator switchable in 1 dB steps
Display range from -150 dBm to +21 dBm (RBW = 10 Hz)
DANL < -155 dBm/Hz
< 1.2 dB level measurement uncertainty at 15°C to 30°C
High resolution spectrum with up to approx. 600.000 measurement points
Fixed resolution detector (Bins), selectable data compression with +Peak, -Peak, or RMS storage for lower data transfer rates
Data transfer in ASCII or binary
Multi-Channel Power option: Simultaneous level measurement in up to 500 definable channels
Level Meter (Zero Span) option: Resolution bandwidths from 100 Hz to 32 MHzScope and I/Q Data option: Real time analysis with CBW 100 Hz – 32 MHz in the time domain, I/Q data transfer up to 32 MHz CBW (blockwise) or streaming up to 400 kHz CBW
Specifications
Frequency range: 5 MHz – 3 GHz
Measurement speed: up to 12 GHz/s
Power consumption: < 25 W
Operating temperature: -10° to +50° C
LNB Control: max. 350 mA, LNB control voltage typ. 13/18V, 22 kHz
Dimensions: 19” x 1.75” x 14.3” (482 x 45 x 362 mm)
Weight: < 5 kg
