- Vertical solution for space saving
- Meets IEC/EN 61000-4-20, IEC 60118-13 and others
- For 100 Watts input power
- Excellent VSWR up to 18 GHz
- Max. septum height: 250 mm
- Septum height at marker position: 217 mm
- Dimension (LxWxH): 1.25 x 0.65 x 0.45 m
- Weight: 45 kg
- Height H1 of cell corpus: 0.345 m
GTEM Cells - TEM Cells
Richiedi Informazioni

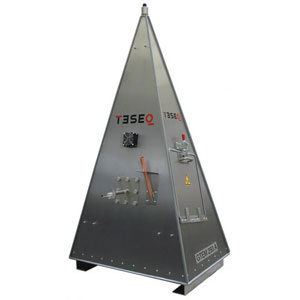

Teseq 250A-V GTEM Cell
Test Cell for Electroacoustics – Hearing Aids IEC 60118-13
In principle, the GTEM cell is a coaxial line expanding pyramidally and having an impedance of 50 Ω. At its end, the line is terminated by a combination of termination resistors and RF absorbers designed and constructed to match the above mentioned impedance.
