- Emissions and immunity testing in a single, shielded environment
- Meets basic standard: IEC/EN 61000-4-20
- Meets standards for emissions testing: CISPR 14-1, IEC 61000-6-3 and IEC 61000-6-4 for EUTs without connected cables
- Meets standards for immunity testing: EN 60118-13
- Ideal for design qualification and pre-certification
- Max. septum height: 750 mm
- Septum height at marker position: 650 mm
- Dimension (LxWxH): 3.95 x 2.02 x 1.95 m
- Weight: approx. 390 kg
- Height H1 of cell corpus: 1.38 m
GTEM Cells - TEM Cells
Richiedi Informazioni

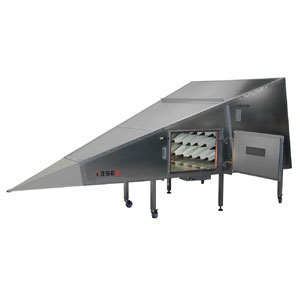

Teseq 750 Cella GTEM per Test di Emissioni ed Immunità
GTEM Cell for Emissions and Immunity Testing
In principle, the GTEM cell is a coaxial line expanding pyramidally and having an impedance of 50 Ω. At its end, the line is terminated by a combination of termination resistors and RF absorbers designed and constructed to match the above mentioned impedance.
