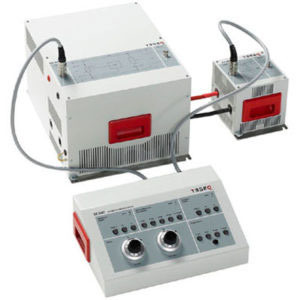

Teseq AES 5501 Automotive Emissions System for ISO 7637-2

The AES 5501 is a system of electronic and mechanical switches, an artificial network, and a unique control station designed for emissions testing to ISO 7637-2. Having gone through meticulous development and intensive beta testing, the AES 5501 contains unique features and uncompromising quality and conformity found nowhere else. Consisting of a four-part solution, the user has complete control over where, when and how the switches can be placed and controlled, including the necessary drive voltages for the relays.

Battery current 100 A Inrush current 300 A for 200 ms Battery voltage 0 to 60 VDC Shunt resistor 10, 20, 40, 120 Ω, Ext. Trigger modes External, internal, manual Battery off time 10 ms – 10 s ±(10% + 10 ms) Battery on time 0.5 ms – 10.5 s ±(10% + 10 ms) Mains input voltage 85 – 264 VAC, 47 – 63 Hz Available relay voltage 12, 24, 36 V (for 42 V applications)
