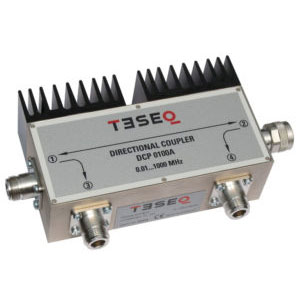

Teseq DCP 0100 Dual Directional Coupler, 10 kHz – 1 GHz

Dual Directional Coupler 10 kHz to 1 GHz

BCI and radiated immunity systems require the accurate monitoring of forward and reflected power levels into clamps, antennas or other transducers. This high power dual directional coupler has been specifically designed for EMC immunity applications.

teseq
File-PDF-icon
Category: Tags: ,
Richiedi Informazioni
  • Frequency range: 10 kHz to 1 GHz
  • Impedance: 50 Ω
  • Power, nominal: 100 W
  • Insertion loss (gate 1 – gate 2): ≤ 0.8 dB (≤ 0.5 dB up to 400 MHz/ ≤ 0.8 dB up to 1 GHz)
  • VSWR: < 1:1.4 (gate 1 – gate 2)
