- Frequency range: 9 kHz to 2 GHz (nominal range), 9 kHz to 4 GHz (utilizable range)
- Gain: typ. 25 dB
- Gain flatness: +0.5 / -3 dB
- RF-Input: N – female, 50 Ω
- RF-Output: N – male, 50 Ω
- VSWR (input): typ. 1.5 (above 20 kHz)
- Noise figure: typ. 4 dB
- 1 dB-compression (output): >+12.5 dBm (119.5 dBµV)
- Intercept point IP3 (output): typ. +33 dBm
- Max. input (linear): -12.5 dBm (94.5 dBµV)
- DC-power supply: 11 to 15 V
- DC-current: approx. 112 mA
- DC-connector: ODU-female, plus on inner conductors
- Operating temperature range: 0° to 40°C
- Storage temperature range: -20° to 60°C
- Size (W x D x H) (without connectors): 27 mm x 50 mm x 27 mm
- Size (W x D x H) (including connectors): 28 mm x 95 mm x 27 mm
- Weight: approx. 127 g
Preamplifiers
Richiedi Informazioni

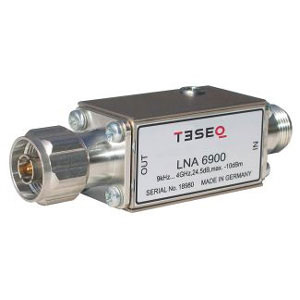

Teseq LNA 6900 Low Noise Amplifier, 9 kHz – 2 GHz
The LNA 6900 is a low noise amplifier with 25 dB of gain covering the nominal frequency range 9 kHz to 2 GHz and can be used up to 4 GHz. With its high gain and low noise figure, it will significantly increase the sensitivity of virtually all spectrum analyzers and other RF measuring instruments.
