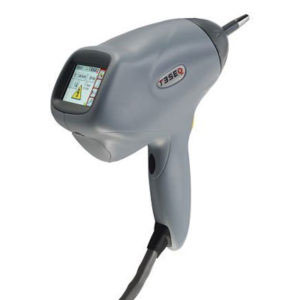

- Air- and contact-discharge to 30 kV
- Battery tested to 30’000 discharges at 30 kV
- Color touch panel control
- Advanced voltage-hold feature
- Activity log
- Compliant with a huge range of OEM and international standards
- Built-in ISO self-calibration procedure
- Easily and quickly interchangeable discharge networks
- Selectable discharge detector
- Basic set
- Carrying case with: discharge pistol, cradle for discharge pistol, high voltage base unit with built-in battery pack, mains adapter and battery charging unit (100 to 250 VAC), discharge network 150 pF/330 Ω, air- and contact-discharge tips, grounding cable, user manual, 25 mm discharge sphere
- Pulse networks
- Network 150 pF/330 Ω as per IEC/EN 61000-4-2 and ISO 10605 (included)
- Optional ISO 10605 networks 330 pF/330Ω, 150 pF/2 kΩ and330 pF/2 kΩ
- Range of RC networks for other standards: R = 0 Ω to 20 kΩ; C = 50 to 2000 pF
- Discharge voltage
- Air-discharge: 200 V to 30 kV (in 100 V steps)
- Contact-discharge: 200 V to 30 kV (in 100 V steps)
- Discharge tips
- Ball and point as per IEC and specials, exchangeable by threaded cap
- Charging voltage measurement
- kV, accuracy better than ±5% (stabilized)
- Discharge detection (air-discharge only)
- Indicated by the kV symbol being displayed in inverse also acoustically in the ‘Single’ operating mode. Adjustable threshold level.
