- Capacitive stability mode
- High bandwidth up to 180 kHz
- Fast slew rate
- Ideal for use as synchronized auxiliary channels required by various EMC standards
- Two gain settings for universal use
- Voltage: +/- 60V
- Current: +/- 10A (Four Quadrant Operation)
- Bandwidth: DC to >150 kHz
- Dimensions: 563 x 483 x 177 mm (22.2 x 19 x 7”), 35 kg (77 lbs)
Automotive
Richiedi Informazioni

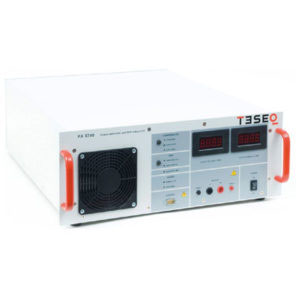

Teseq PA 5740 Power Amplifier / Battery Simulator
This battery simulator is designed to replace the vehicle battery in the test environment. These sources must fulfill various criteria concerning power rating, voltage, slew rate, impedance, etc. depending on the particular application. Bipolar current sources are specified for in several cases. Pulse 2b, pulse 4, sine wave noise and other complex simulations are realm of the PA 5740. Of course the amplifier is also perfectly suited for ISO 7637 compliant simulated conducted transient testing.
