- Frequency range 1 MHz to 6 GHz
- Linear measurement range -45 to +20 dBm
- Max. input/no damage: +23 dBm
- Input return loss: >20 dB (below 4 GHz), >17 dB (4 GHz to 6 GHz)
- Connector: N male 50 Ω
- RMS power using log detector
- Low voltage detection
- Versions for direct connection to ITS 6006 or USB
- Metal casing, ruggedly designed
Power Meters, Power Meters
Richiedi Informazioni

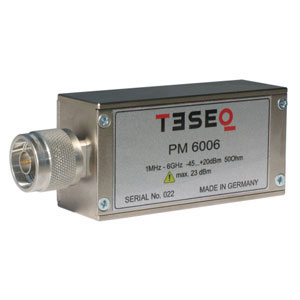

Teseq PM 6006 USB RF Power Meter, 1 MHz – 6 GHz
Power Meter 1 MHz to 6 GHz
EMC immunity testing makes very specific demands on RF power meters. A large dynamic range, fast measurements, rugged design and a frequency range that matches the application are some of the unique requirements for power meters in an EMC test environment. The PM 6006 power meter has been specially designed with these features.
