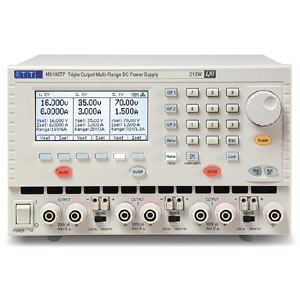

TTi MX Series Power Supply, Triple Outputs, 315 or 378W

Bench/System DC Power Supply, Multi-Range, Digital Control Triple Outputs, 315 or 378W with/without Remote Interfaces

• Three high performance outputs each with full functionality
• Range switching gives variable voltage/current combinations
• Shared power mode provides double power from a single output
• Low output noise and ripple via linear final regulation
• High setting resolution of up to 1mV and 0.1mA
• Variable OVP and OCP trips on all outputs
• 50 setting memories per output plus 50 linked memories
• Selectable voltage tracking (isolated tracking)
• Selectable current meter averaging
• Switchable remote sense capability
• Graphic LCD provides simultaneous output metering
• Numeric or spin-wheel control of all parameters
• Individual or combined output on/off control with
• programmable delay sequencing.
• 3U half-rack case for bench or rack mounting
• GPIB, RS-232, USB and LAN (LXI) interfaces (-P models)
• Duplicate power & sense terminals at rear (-P models)

MX100T and MX100TP:

• 315 watts total power
• Three outputs of equal power, each capable of 35V at 3A
• Range switching provides up to 70 volts and up to 6 amps

MX180T and MX180TP:

• 375 watts plus of total power
• Two high power outputs plus one low power output
• High power outputs each capable of 30 volts at 6 amps
• Range switching provides up to 120 volts or up to 20 amps
• Low power output provides up to 12 volts or up to 3 amps
