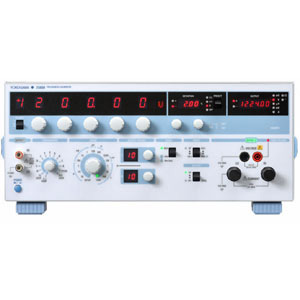

Yokogawa 2560A High Voltage and High Current Precision DC Calibrator

Yokogawa 2560A High Voltage and High Current Precision DC Calibrator

With output ranges of 100 mV to 1000 V and 100 µA to 30A, plus 10 different types of Thermocouples and Pt100 RTD, the 2560A Precision DC Calibrator can effectively solve the calibration requirements for DC Analog Meters and various temperature measuring instruments and controllers.

File-PDF-iconEnglish Version
yokogawa
Category: Tags: ,
Richiedi Informazioni
  • High Accuracy
    • DC Voltage:± 50 ppm
    • DC Current: ± 70 ppm
    • At 1 V and 1 mA range, for 180 days, 10 ppm = 0.001%
  • High Stability
      • DC voltage: ±10 ppm/h
      • DC current: ±20 ppm/h
      • At 1 V and 1 mA range
  • High Resolution
      • 5.5 digits, ±120000 count display
      • 6.5 digits, ±1200000 count display*
      • *In the high resolution mode
  • Wide Output Range
      • DC voltage: −1224.00 V to +1224.00 V
      • DC current: −12.2400 A to +36.720 A
      • 5 voltage ranges (100 mV, 1 V, 10 V, 100 V, 1000 V)
      • 7 current ranges (100 μA, 1 mA, 10 mA, 100 mA, 1 A, 10 A, 30 A)
      • The maximum output is ±122.4% of range. An instrument’s 1200 V range can be calibrated.
