| DCV | Range | 0.3/1.2/3/12/30/120/300/1200V |
|---|---|---|
| Accuracy | ± 2.0% of full scale (e×cept 1200V range ± 3.0%) | |
| Remarks | Input resistance : 100 KΩ/V | |
| DCA | Range | 0.012/0.12/1.2/12/120/1200mA |
| Accuracy | ± 3.0% of full scale (e×cept 1200V range ± 4.0%) | |
| Remarks | Terminal voltage drop: less than 250 mV | |
| ACV | Range | 3/12/30/120/300/1200V |
| Accuracy | ± 3.0% | |
| Remarks | Input impedance: 10 KΩ/V | |
| Resistance | Range | 2/200/ 20,000 KΩ |
| Accuracy | ± 3.0% of full scale | |
| Remarks | enter scale mark: 10 Ω for ma×. Full scale of 2 KΩ (min. Div. 0.2 Ω) |
|
| Decibel | Range | -20 to 11/23/31/43 dB |
| Accuracy | ± 3.0% of full scale (dB) | |
| Remarks | Input impedance | |
| Standard accessories | 1.5V battery: 1, Test leads set: 1, Alligator clip: 1, Portable case: 1 | |
Digital Multimeters, Uncategorized
Richiedi Informazioni

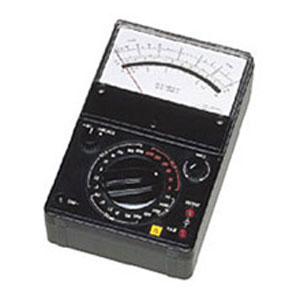

Yokogawa 3201 Circuit Tester
Type 3201 Circuit Tester has measuring function of AC/DC voltage, DC current, DC resistance and decibel. It is suitable for maintenance such as telephones, wireless communication equipment, radios, TV and other general purpose measurements.
