PIM 110 Ring Wave Impulse Module

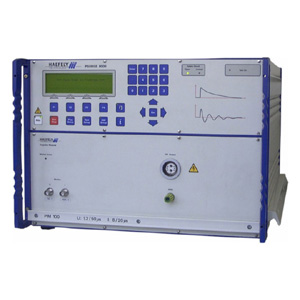

Haefely PSURGE 8000 – PIM 110 Ring Wave Impulse Module

Il PIM 110 di Haefely, come parte del sistema PSURGE 8000 Surge Platform System, può essere utilizzato insieme a potenti reti di accoppiamento / disaccoppiamento (CDN) per la sovrapposizione dell’impulso sulle linee di alimentazione CA e CC.

Le CDN monofase e trifase hanno ingressi multiplex, consentendo di collegare fino a 3 moduli di impulsi. Una serie completa di impulsi di prova può quindi essere eseguita in modo completamente automatico e senza la necessità di spegnere e ricollegare l’EUT.

Haefely PSURGE 8000 – PIM 110 Ring Wave Impulse Module
Haefely PIM 110 Ring Wave Impulse Module DatasheetHaefely PIM 110 Ring Wave Impulse Module Datasheet Inglese
Category: Tags: ,
Richiedi Informazioni
  • Floating high voltage output
  • Ring wave 5us – 100kHz (voltage & current)
  • 8kV impulse voltage
  • 12W, 30W and 200W source impedance
  • Impulse voltage & current monitors
  • Accurate Impulse Synchronisation – The PIM 110 impulses can be applied to the AC power wave with ±1° accuracy.
  • Safe and Easy – The interlocked HV section and the integrated controller allow your operators to test safely and easily.
  • Sturdy and Reliable – Careful component selection ensures that the PIM 110 will continue to operate under the most strenuous testing regime.
  • Report Generation – The unit can automatically generate test reports without a computer. Add WinFEAT&R control and reporting software to collect and collate data in any format you like.
  • Perform tests as you really want – Because the EUT requires a CDN to enable coupling of the Surge impulse, PIM 110 pulses are guaranteed to be within the standard specification at the point where an EUT connects to the test system.
