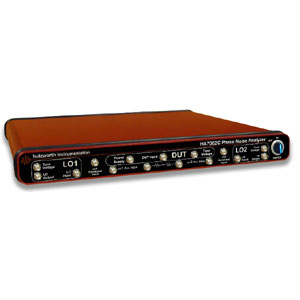

Holzworth HA7062C Analizzatore di Rumore di Fase, 10 MHz - 6GHz

Holzworth HA7062C Analizzatore di Rumore di Fase, 10 MHz – 6GHz

The HA7062C inherits the same ANSI Z540 calibrated accuracy as its predecessor; as well as industry leading data acquisition speeds, ease of use, and extremely high reliability. The additional features that come with revision C include: expanded measurement offsets to 40MHz, input splitter bypass ports for higher channel – channel isolation, and independent baseband input ports.

Holzworth HA7062C Analizzatore di Rumore di Fase, 10 MHz - 6GHz
Holzworth HA7062C Analizzatore di Rumore di Fase DatasheetHolzworth HA7062C Analizzatore di Rumore di Fase Datasheet Lingua Inglese
Category: Tags: ,
Richiedi Informazioni
  • DUT Tuning Range: 10 MHz – 6 GHz(base), 12 GHz, 20 GHz
  • Measurement Floor
    • Internal LO Mode: <- 180 dBc/Hz
    • Internal LO Bypass Mode: <- 185 dBc/Hz
    • External LO Mode: <- 190 dBc/Hz
  • Measurement Speed (per correlation): <1s (1kHz – 40 MHz), <15s (1Hz – 40 MHz)
  • Measurement Offset: 0.1Hz to 40 MHz
  • Warranty: 3 years
