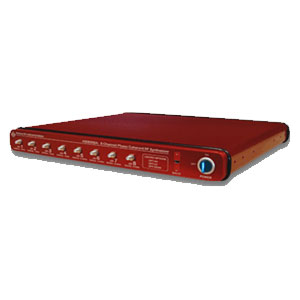

The HS9000 Series synthesizer platform is designed to be user/application defined. Follow 3 easy steps to determine the part number with the required options.
STEP 1: SELECT TOTAL NUMBER OF CHANNELS
Select the base part number, strictly calling out the total number of channels to be loaded into the multi-channel chassis.
| ….Number of Channels | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| ….Part Number | HS9001A | HS9002A | HS9003A | HS9004A | HS9005A | HS9006A | HS9007A | HS9008A |
STEP 2: SELECT CHANNEL FREQUENCY OPTIONS
Select any combination of channel frequency options. Note that the total number of channels specified here must equal the number of channels selected under STEP 1.
| Frequency Range | Number of Channels per Frequency Range | |||||||
| 1x | 2x | 3x | 4x | 5x | 6x | 7x | 8x | |
| CMOS OUTPUT | OPT- CMOS1 | OPT- CMOS2 | OPT- CMOS3 | OPT- CMOS4 | OPT- CMOS5 | OPT- CMOS6 | OPT- CMOS7 | OPT- CMOS8 |
| 250kHz – 1GHz | OPT-A1 | OPT-A2 | OPT-A3 | OPT-A4 | OPT-A5 | OPT-A6 | OPT-A7 | OPT-A8 |
| 250kHz – 2GHz | OPT-B1 | OPT-B2 | OPT-B3 | OPT-B4 | OPT-B5 | OPT-B6 | OPT-B7 | OPT-B8 |
| 250kHz – 3GHz | OPT-C1 | OPT-C2 | OPT-C3 | OPT-C4 | OPT-C5 | OPT-C6 | OPT-C7 | OPT-C8 |
| 250kHz – 4GHz | OPT-D1 | OPT-D2 | OPT-D3 | OPT-D4 | OPT-D5 | OPT-D6 | OPT-D7 | OPT-D8 |
| 250kHz – 6.4GHz | OPT-E1 | OPT-E2 | OPT-E3 | OPT-E4 | OPT-E5 | OPT-E6 | OPT-E7 | OPT-E8 |
| 10MHz – 12.5GHz | OPT-X1 | OPT-X2 | OPT-X3 | OPT-X4 | N/A | N/A | N/A | N/A |
| 10MHz – 20GHz | OPT-F1 | OPT-F2 | OPT-F3 | OPT-F4 | N/A | N/A | N/A | N/A |
STEP 3: SELECT ADDITIONAL OPTIONS & ACCESSORIES
The options listed in this section are available for the multi-channel platform to comply with application specific requirements.
| PART NUMBER | ….Description | |
| OPT-EXTMOD-n | ….Channel dedicated, external modulation input. n=1, 2, 3… (up to 6 channels) | |
| OPT-OCXO | ….High Performance OCXO. 10dB Improved Phase Noise at close to the carrier | |
| OPT-PWR18-n | ….+20dBm (max) Calibrated Output Power Level. n=1, 2, 3… (up to 5 channels) ¹ | |
| HCM5 | … Ethernet Control Module | |
| HCM10 | … RS232 Control Module | |
| RACK-1U | ….19″ Rack Mount Bracket Kit for 1U chassis, 90deg Rear Bracket |  |
| RACK2-1U | ….19″ Rack Mount Bracket Kit for 1U chassis, Straight Rear Bracket | |
¹ OPT-PWR18-n is only available for channel options A-E (up to 6.4GHz). Channel Options X (12.5GHz) and F (20GHz) come standard with +18dBm calibrated output.
