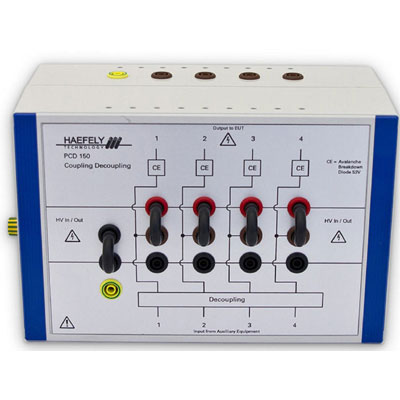

Haefely PCD 150 Damped Oscillatory Wave Coupling and Decoupling Network

Damped Oscillatory Wave Coupling and Decoupling Network for Data Control Lines

The PCD 150 is used for surge coupling onto unshielded data- and signal lines according to IEC/EN standards. Damped oscillatory waves with both 100kHz and 1MHz up to 3.3kV peak as well as ring wave 100kHz with Z=200 Ohm up to 4.4kV peak can be coupled. Coupling and decoupling elements are included in one box because of the sensitive impulse shape.
