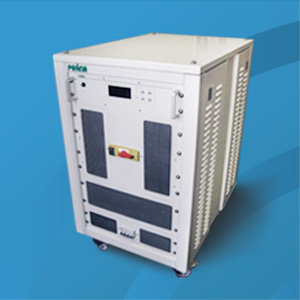

Prana DP 1300 Amplificatore di Potenza
,

Prana DP 1300 Amplificatore di Potenza, 10 kHz – 250 MHz, 300 W CW
Fuori Produzione

  • Class A solid state
  • Broadband (instantaneous single band): 10 kHz – 250 MHz
  • Typical output power : 1300 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB>1000 W and H<-20 dBc up to 100 MHz
    • P1dB>700 Wand H<-20 dBc between 100 MHz and 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19″ Cabinet on wheels
  • 3 years standard warranty
Prana DP 1300 Amplificatore di Potenza
Prana DP 1300 Amplificatore di Potenza DatasheetPrana DP 1300 Amplificatore di Potenza English Datasheet
Categories: , Tags: , ,
Richiedi Informazioni
  • Frequency bandwidth : 10 kHz – 250 MHz
  • Typical output power : 1300 W
  • Power at 3 dB compression : 1200 W min. up to 100 MHz / 900 W min. from 100 MHz to 250 MHz
  • Power at 1 dB compression : 1000 W min. up to 100 MHz / 700 W min. from 100 MHz to 250 MHz
  • Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
  • Class type : Class A
  • Gain : 64 dB
  • Linear power gain flatness : ± 2.5 dB max
  • Mismatch tolerance : infinite without damage
  • Input impedance : 50 ohms / VSWR: 2:1max
  • Output impedance : 50 ohms / VSWR: 2:1max
  • Input power : +10 dBm max.
  • RF input connector : Type N fem. (front or rear panel) – other connector type on request
  • RF output connector : Type 7/16 fem. (front or rear panel) – other connector type on request
  • Integrated bidirectional power coupler : Coupling factor 59 dB typ.
  • Power coupling connector : Type N fem. (front or rear panel)
  • Safety interlock : Connector type BNC
  • Digital control : Transistors, power supplies and internal temperature
  • Mismatch protection : Self limitation for reflected power > 800 W
  • Communication interface : IEEE 488
  • 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
  • Ambient operating temperature : 0 °C / + 35 °C
  • Room temperature storage : -20 °C / +70 °C
  • Cooling : Forced air: 240 l/sec max. (self contained fans)
  • Mains voltage : 47-63 Hz, 3 phases (star or delta)
  • Rated current : 5.4 kVA
  • Dimensions : 600 x 840 x 1050 mm (18U) / 23.6 x 33.1 x 41.3 in (18U)
  • Weight : 230 kg / 506 lb
