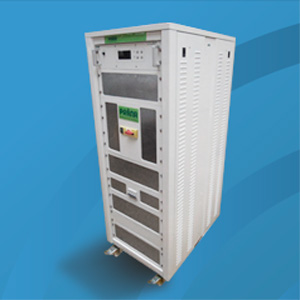

Prana DP 2500 Amplificatore di Potenza
,

Prana DP 2500 Amplificatore di Potenza, 10 kHz – 250 MHz, 2500 W CW
Fuori Produzione

  • Class A solid state
  • Broadband (instantaneous single band): 10 kHz – 250 MHz
  • Typical output power : 2500 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 2000 W and H<-20 dBc up to 80 MHz
    • P1dB > 1100 W and H<-20 dBc from 80 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19″ Cabinet on wheels
  • 3 years standard warranty
Prana DP 2500 Amplificatore di Potenza
Prana DP 2500 Amplificatore di Potenza DatasheetPrana DP 2500 Amplificatore di Potenza English Version
Categories: , Tags: , ,
Richiedi Informazioni
  • Frequency bandwidth : 10 kHz – 250 MHz
  • Typical output power : 2500 W
  • Power at 3 dB compression : 2400 W min. up to 80 MHz / 1500 W min. from 80 MHz to 250 MHz
  • Power at 1 dB compression : 2000 W min. up to 80 MHz / 1100 W min. from 80 MHz to 250 MHz
  • Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
  • Class type : Class A
  • Gain : 63 dB
  • Linear power gain flatness : ± 3 dB max
  • Mismatch tolerance : infinite without damage
  • Input impedance : 50 ohms / VSWR: 2:1max
  • Output impedance : 50 ohms / VSWR: 2:1max
  • Input power : +10 dBm max.
  • RF input connector : Type N fem. (front or rear panel) – other connector type on request
  • RF output connector : Type 7/16 fem. (front or rear panel) – other connector type on request
  • Integrated bidirectional power coupler : Coupling factor 69 dB typ.
  • Power coupling connector : Type N fem. (front or rear panel)
  • Safety interlock : Connector type BNC
  • Digital control : Transistors, power supplies and internal temperature
  • Mismatch protection : Self limitation for reflected power > 1000 W
  • Communication interface : IEEE 488
  • 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
  • Ambient operating temperature : 0 °C / + 35 °C
  • Room temperature storage : -20 °C / +70 °C
  • Cooling : Forced air: 480 l/sec max. (self contained fans)
  • Mains voltage : 47-63 Hz, 3 phases (star or delta)
  • Rated current : 10.35 kVA
  • Dimensions : 600 x 840 x 1682 mm (32U) / 23.6 x 33.1 x 66.2 in (32U)
  • Weight : 390 kg / 858 lb
