- Frequency bandwidth : 10 kHz – 250 MHz
- Typical output power : 5000 W
- Power at 3 dB compression : 5000 W min up to 10 MHz / 3000 W min from 10 MHz to 250 MHz
- Power at 1 dB compression : 4500 W min up to 10 MHz / 2400 W min from 10 MHz to 250 MHz
- Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
- Class type : Class A
- Gain : 67 dB
- Linear power gain flatness : ± 4 dB max
- Mismatch tolerance : infinite without damage
- Input impedance : 50 ohms / VSWR: 2:1max
- Output impedance : 50 ohms / VSWR: 2:1max
- Input power : +10 dBm max.
- RF input connector : Type N fem. (front or rear panel) – other connector type on request
- RF output connector : Type 7/16 fem. (front or rear panel) – other connector type on request
- Integrated bidirectional power coupler : Coupling factor 69 dB typ.
- Power coupling connector : Type N fem. (front or rear panel)
- Safety interlock : Connector type BNC
- Digital control : Transistors, power supplies and internal temperature
- Mismatch protection : Self limitation for reflected power > 2000 W
- Communication interface : IEEE 488
- 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
- Ambient operating temperature : 0 °C / + 35 °C
- Room temperature storage : -20 °C / +70 °C
- Cooling : Forced air: 960 l/sec max. (self contained fans)
- Mains voltage : 47-63 Hz, 3 phases (star or delta)
- Rated current : 21 kVA
- Dimensions : 800 x 840 x 2120 mm (42U) / 31.5 x 33.1 x 83.4 in (42U)
- Weight : 590 kg / 1300 lb
fuori produzione, Prana Amplificatori di Potenza DP 10 KHz - 250 MHzPrana DP 5000 Amplificatore di Potenza, 10 kHz – 250 MHz / 5000 W CW

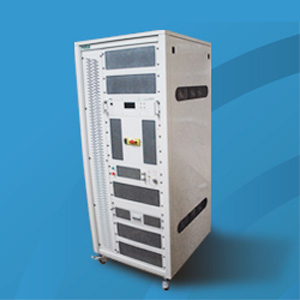

Prana DP 5000 Amplificatore di Potenza, 10 kHz – 250 MHz / 5000 W CW
Fuori Produzione
- Class A solid state
- Broadband (instantaneous single band): 10 kHz – 250 MHz
- Typical output power : 5000 W CW
- Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
- P1dB > 4500 W and H<-20 dBc up to 10 MHz and
- P1dB > 2400 W and H<-20 dBc from 10 MHz to 250 MHz
- Air cooling: self contained fans
- Can operate in full mismatch conditions without damage
- Reliable, efficient and robust
- 22″ Cabinet on wheels
- 3 years standard warranty
VERSIONS :
- DP 5000 DC amplifier with:
- Display
- Digital control
- IEEE 488 GPIB Communication
- Integrated bidirectional coupler
- display of instantaneous power
MAINTENANCE :
- Amplifier designed for minimal maintenance
- Easy access to all parts
- Modular design
- Repairs with minimum adjustments
- Rapid diagnostic
- Minimal downtime
- Contract for preventive and corrective maintenance available
APPLICATIONS :
- EMC tests
- RF tests and instrumentation
- Radiocommunication
- Measurement and research laboratories
