- Frequency bandwidth : 100 kHz – 200 MHz (Frequency extension between 80 kHz to 250 MHz upon request)
- Typical output power : 3500 W
- Power at 3 dB compression : 4000 W min. up to 100 MHz / 2000 W min. from 100 MHz to 200 MHz
- Power at 1 dB compression : 3000 W min. up to 100 MHz / 1200 W min. from 100 MHz to 200 MHz
- Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
- Class type : Class A
- Gain : 65 dB
- Linear power gain flatness : ± 3 dB max
- Mismatch tolerance : infinite without damage
- Input impedance : 50 ohms / VSWR: 2:1max
- Output impedance : 50 ohms / VSWR: 2:1max
- Input power : +10 dBm max.
- RF input connector : Type N fem. (front or rear panel) – other connector type on request
- RF output connector : Type 7/16 fem. (front or rear panel) – other connector type on request
- Integrated bidirectional power coupler : Coupling factor 69 dB typ.
- Power coupling connector : Type N fem. (front or rear panel)
- Safety interlock : Connector type BNC
- Digital control : Transistors, power supplies and internal temperature
- Mismatch protection : Self limitation for reflected power > 2000 W
- Communication interface : IEEE 488
- 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
- Ambient operating temperature : 0 °C / + 35 °C
- Room temperature storage : -20 °C / +70 °C
- Cooling : Forced air: 480 l/sec max. (self contained fans)
- Mains voltage : 47-63 Hz, 3 phases (star or delta)
- Rated current : 15 kVA
- Dimensions : 800 x 840 x 1590 mm (30U) / 31.5 x 33.1 x 62.6 in (30U)
- Weight : 390 kg / 858 lb
Prana Amplificatori di Potenza GN 100 KHz - 200 MHz
Richiedi Informazioni

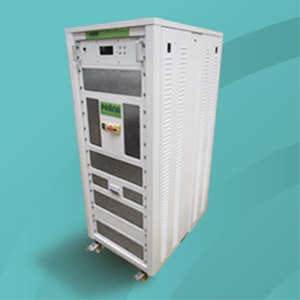

Prana GN 3500 Amplificatore di Potenza, 100 kHz – 200 MHz, 3500W
- Class A solid state
- Broadband (instantaneous single band): 100 kHz – 200 MHz
- Frequency extension between 80 kHz to 250 MHz upon request (with limited specifications)
- Typical output power : 3500 W CW
- Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
- P1dB > 3000 W and H<-20 dBc up to 100 MHz and
- P1dB > 1200 W and H<-20 dBc from 100 MHz to 200 MHz
- Air cooling: self contained fans
- Can operate in full mismatch conditions without damage
- Reliable, efficient and robust
- 22″ Cabinet on wheels
- 3 years standard warranty
