- Frequency bandwidth : 80 MHz – 1000 MHz
- Typical output power : 1700 W
- Power at 3 dB compression : 1500 W min up to 600 MHz /1400 W min from 600 MHz to 1000 MHz
- Power at 1 dB compression : 1500 W min up to 600 MHz /1200 W min from 600 MHz to 1000 MHz
- Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
- Class type : Class A
- Gain : 60 dB
- Linear power gain flatness : ± 3.5 dB max
- Mismatch tolerance : infinite without damage
- Input impedance : 50 ohms / VSWR: 2:1max
- Output impedance : 50 ohms / VSWR: 2:1max
- Input power : +10 dBm max.
- RF input connector : Type N fem. (front or rear panel) – other connector type on request
- RF output connector : Type 7/16 fem. (front or rear panel) – other connector type on request
- Integrated bidirectional power coupler : Coupling factor 59 dB typ.
- Power coupling connector : Type N fem. (front or rear panel)
- Safety interlock : Connector type BNC
- Digital control : Transistors, power supplies and internal temperature
- Mismatch protection : Self limitation for reflected power > 750 W
- Communication interface : IEEE 488
- 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
- Ambient operating temperature : 0 °C / + 35 °C
- Room temperature storage : -20 °C / +70 °C
- Cooling : Forced air: 960 l/sec max. (self contained fans)
- Mains voltage : 47-63 Hz, 3 phases (star or delta)
- Rated current : 18.6 kVA
- Dimensions : 840 x 800 x 1940 mm (38U) / 33.1 x 31.5 x 76.4 in (38U)
- Weight : 590 kg / 1298 lb
fuori produzione, Prana Amplificatori di Potenza MT 100 MHz 80 - 1000 MHzPrana MT 1700 Amplificatore di Potenza, 80 MHz – 1000 MHz, 1700W
Richiedi Informazioni

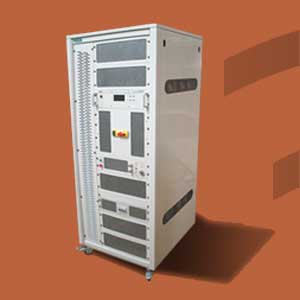

Prana MT 1700 Amplificatore di Potenza, 80 MHz – 1000 MHz, 1700W
Fuori Produzione
- Class A solid state
- Broadband (instantaneous single band): 80 MHz – 1000 MHz
- Typical output power : 1700 W CW
- Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
- P1dB > 1500 W and H < -20 dBc up to 600 MHz and
- P1dB > 1200 W and H < -20 dBc from 600 MHz to 1000 MHz
- Air cooling: self contained fans
- Can operate in full mismatch conditions without damage
- Upgradable to MT 2000 possible
- Reliable, efficient and robust
- 22″ Cabinet on wheels
- 3 years standard warranty
