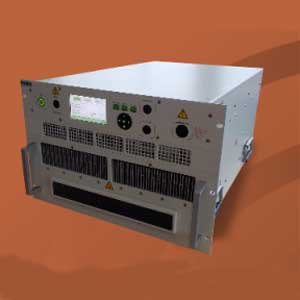

Prana MT 400 Amplificatore di Potenza
,

Prana MT 400 Amplificatore di Potenza, 80 MHz – 1000 MHz, 400W
Fuori Produzione

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Typical output power : 400 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 400 W and H < -20 dBc up to 450 MHz and
    • P1dB > 250 W and H < -20 dBc from 450 MHz to 1000 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to MT 700 possible (24U)
  • Reliable, efficient and robust
  • 19″ Rack
  • 3 years standard warranty
Prana MT 400 Amplificatore di Potenza 80 MHz – 1000 MHz / 400W
Prana MT 400 Amplificatore di Potenza DatasheetPrana MT 400 Amplificatore di Potenza English Datasheet
Categories: , Tags: , ,
Richiedi Informazioni
  • Frequency bandwidth : 80 MHz – 1000 MHz
  • Typical output power : 400 W
  • Power at 3 dB compression : 500 W min. up to 450 MHz / 300 W min. from 450 MHz to 1000 MHz
  • Power at 1 dB compression : 400 W min. up to 450 MHz / 250 W min. from 450 MHz to 1000 MHz
  • Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
  • Class type : Class A
  • Gain : 54 dB
  • Linear power gain flatness : ± 3 dB max
  • Mismatch tolerance : infinite without damage
  • Input impedance : 50 ohms / VSWR: 2:1max
  • Output impedance : 50 ohms / VSWR: 2:1max
  • Input power : +10 dBm max.
  • RF input connector : Type N fem. (front or rear panel) – other connector type on request
  • RF output connector : Type N fem. (front or rear panel) – other connector type on request
  • Safety interlock : Connector type BNC
  • Digital control : Transistors, power supplies, temperatures, fans
  • Communication interface : Ethernet, USB, GPIB, RS232
  • Color LCD Display with touch screen : Status, faults, (direct and reverse instantaneous power for DC version)
  • Ambient operating temperature : 0 °C / + 45 °C
  • Room temperature storage : -20 °C / +70 °C
  • Cooling : Forced air with fan speed control: 120 l/sec max. (self contained fans)
  • Power voltage : 200-250 VAC, 47-63 Hz, single phase
  • Rated current : 10.2 A at 230 VAC
  • Dimensions : 640 x 450 x 312 mm (7U) / 25.2 x 17.7 x 12.3 in (7U)
  • Weight : 45 kg / 99 lb
MT 400 DC version :
  • Integrated bidirectional power coupler : Coupling factor 59 dB typ.
  • Power coupling connector : Type N fem. (rear panel)
  • Estimated output power losses due to the coupler : 0.3 dB
