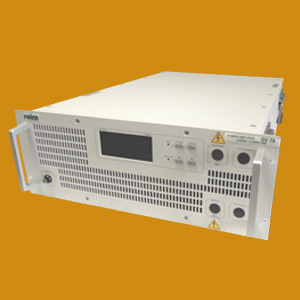

Prana SV 70 Amplificatore di Potenza, 0.8 GHz – 3.2 GHz, 70W
Fuori Produzione


  • Class A solid state
  • Broadband (instantaneous single band): 0.8 GHz – 3.2 GHz
  • Typical output power : 70 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 70 W and H < -20 dBc up to 2 GHz and
    • P1dB > 40 W and H < -20 dBc from 2 GHz to 3.2 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to SV 120 possible (7U)
  • Reliable, efficient and robust
  • 19″ Rack
  • 3 years standard warranty

Prana SV 70 Amplificatore di Potenza
Prana SV 70 Amplificatore di Potenza DatasheetPrana SV 70 Amplificatore di Potenza Datasheet Inglese
Richiedi Informazioni
  • Frequency bandwidth : 0.8 GHz – 3.2 GHz
  • Typical output power : 70 W
  • Power at 3 dB compression : 70 W min. up to 2 GHz / 50 W min. from 2 GHz to 3.2 GHz *
  • Power at 1 dB compression : 60 W min. up to 2 GHz / 40 W min. from 2 GHz to 3.2 GHz *
  • Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
  • Class type : Class A
  • Gain : 47 dB
  • Linear power gain flatness : ± 5 dB max
  • Mismatch tolerance : infinite without damage
  • Input impedance : 50 ohms / VSWR: 2:1max
  • Output impedance : 50 ohms / VSWR: 2:1max
  • Input power : +10 dBm max.
  • RF input connector : Type N fem. (front or rear panel) – other connector type on request
  • RF output connector : Type N fem. (front or rear panel) – other connector type on request
  • Ambient operating temperature : 0 °C / + 35 °C
  • Room temperature storage : -20 °C / +70 °C
  • Cooling : Forced air: 60 l/sec max. (self contained fans)
  • Power voltage : 90-250 VAC, 47-63 Hz, single phase
  • Rated current : 4.5 A at 110 VAC / 2.2 A at 230 VAC
  • Dimensions : 640 x 450 x 178 mm (4U) / 25.2 x 17.7 x 7 in (4U)
  • Weight : 25 kg / 55 lb
SV 70 D version :
  • Safety interlock : Connector type BNC
  • Digital control : Transistors, power supplies and internal temperature
  • Communication interface : IEEE 488
  • 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
SV 70 SC and SV 70 DC versions :
  • Integrated bidirectional power coupler : Coupling factor 50 dB typ. (SC version) / 59 dB typ. (DC version)
  • Power coupling connector : Type N fem. (front or rear panel)
  • Estimated output power losses due to the coupler : 0.3 dB * => take account these power losses for the min output power
