- Frequency bandwidth : 0.8 GHz – 6 GHz
- Typical output power : 220 W / 150 W
- Power at 3 dB compression : 200 W min. up to 3.2 GHz / 120 W min. up to 6 GHz *
- Power at 1 dB compression : 140 W min. up to 3.2 GHz / 100 W min. up to 6 GHz *
- Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
- Class type : Class A
- Gain : 54 dB
- Linear power gain flatness : ± 5 dB max
- Mismatch tolerance : infinite without damage
- Input impedance : 50 ohms / VSWR: 2:1max
- Output impedance : 50 ohms / VSWR: 2:1max
- Input power : +10 dBm max.
- RF input connector : Type N fem. (front or rear panel) – other connector type on request
- RF output connector : Type N fem. (front or rear panel) – other connector type on request
- Integrated bidirectional power coupler : Coupling factor 59 dB typ.
- Power coupling connector : Type N fem. (front or rear panel)
- Safety interlock : Connector type BNC
- Digital control : Transistors, power supplies and internal temperature
- Communication interface : IEEE 488
- 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
- Ambient operating temperature : 0 °C / + 35 °C
- Room temperature storage : -20 °C / +70 °C
- Cooling : Forced air: 240 l/sec max. (self contained fans)
- Power voltage : 200-250 VAC, 47-63 Hz, single phase
- Rated current : 10 A at 230 VAC
- Dimensions : 600 x 840 x 1320 mm (24U) / 23.6 x 33.1 x 52 in (24U)
- Weight : 230 kg / 507 lb
Prana Amplificatori di Potenza SX 0.8 GHz - 6 GHz
Richiedi Informazioni

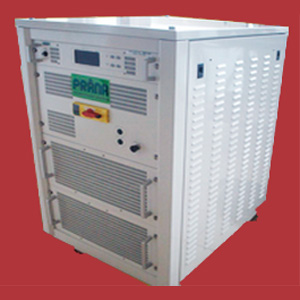

Prana SX 220/150 Amplificatore di Potenza, 0.8 GHz – 6 GHz / 220 W CW – 150 W CW
- Class A solid state
- Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
- Typical output power :
- 220 W CW (0.8 – 3.2 GHz) and
- 150 W CW (3.2 – 6 GHz)
- Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
- P1dB > 140 W and H < -20 dBc up to 3.2 GHz and
- P1dB > 100 W and H < -20 dBc from 3.2 GHz to 6 GHz
- Air cooling: self contained fans
- Can operate in full mismatch conditions without damage
- Reliable, efficient and robust
- 19″ Rack
- 3 years standard warranty
