- Nominal Frequency range 1 – 8 GHz
- Useable Frequency range 0.8 – 10.5 GHz
- Connector female 50 Ω N
- Mounting tube d=22 mm, L=200 mm
- Isotropic gain typ. 4…15 dBi (1 – 8 GHz)
- Antenna Factor 20 … 34 dB/m
- Difference of the Polarisation < +/- 0.5 dB f < 4.8 GHz, < +/- 1.5 dB f > 4.8 GHz
- Planes < +/- 1.5 dB f > 4.8 GHz
- SWR typ. 2
- Inversion Symmetry typ. < 0.5 dB
- Port Isolation < – 26 dB
- Cross Polar Rejection < -25 dB typ.
- Max. Input Power 50 W
- Dimensions 190 x 190 x 420 (600)
- Weight 2.8 kg
Antenne Horn EMC - Compatibilità elettromagnetica
Richiedi Informazioni

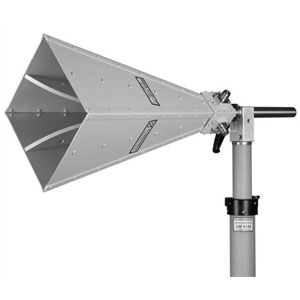

Schwarzbeck BBHX 9120 LF Dual Polarized Broadband Horn Antenna
The Schwarzbeck BBHX 9120 LF Dual Polarized Broadband Horn Antenna is dual polarised double ridge broadband horn antenna for receive and transmit applications.
