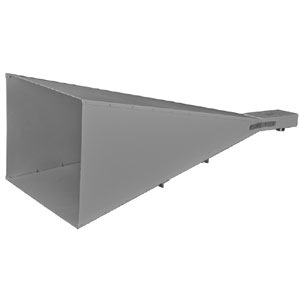

The Schwarzbeck HA 9251-24 Pyramidal Standard Gain Horn Antenna is a linear polarized standard gain horn antenna with coaxial 7/16 connector for highest power handling. The antenna was designed to generate highest fieldstrength at 1 m distance.

Schwarzbeck HA 9251-24 Pyramidal Standard Gain Horn Antenna
Schwarzbeck HA 9251-24 Pyramidal Standard Gain Horn Antenna DatasheetSchwarzbeck HA 9251-24 Pyramidal Standard Gain Horn Antenna Datasheet English Version
Category: Tags: ,
Richiedi Informazioni
  • Frequency Range (nominal) 2-4 GHz
  • Frequency Range (useable) 1.9-4.6 GHz
  • Gain (Farfield) ˜ 17-20 dBi
  • Antenna Factor 19…23 dB/m
  • VSWR typ. < 1.5
  • Front to Back Ratio typ. > 27 dB
  • Half Power Beamwidth (E-Plane)
    • 17° @ 2 GHz
    • 13° @ 3 GHz
    • 11° @ 4 GHz
  • Half Power Beamwidth (H-Plane)
    • 19° @ 2 GHz
    • 14° @ 3 GHz
    • 16° @ 4 GHz
  • Connector 7/16
  • Max. Input Power
    • 2 kW (2 GHz)
    • 1 kW (4 GHz)
  • Max. Peak Input Power 10 kW
  • Mounting Threads 3/8″ , M12
  • Dimensions 325 x 445 x 965 mm
  • Weight 5.6 kg
  • Material Aluminium
