- Frequency Range (nominal) 4 – 8 GHz
- Frequency Range (useable) 3.7…8.5 GHz
- Gain ˜ 17-21 dBi
- Antenna Factor ˜ 25…28 dB/m
- VSWR typ. < 1.5
- Front to Back Ratio typ. > 27 dB
- Half Power Beamwidth (E-Plane)
- 21° @ 4 GHz
- 14° @ 6 GHz
- 12° @ 8 GHz
- Half Power Beamwidth (H-Plane)
- 22° @ 4 GHz
- 16° @ 6 GHz
- 13° @ 8 GHz
- Connector N, SC
- Max. Input Power (cw)
- 1 kW (4 GHz)
- 0.5 kW (8 GHz)
- Max. Peak Input Power 5 kW
- Mounting Threads 3/8″ , 1/4″
- Dimensions 492 x 164 x 224 mm
- Weight 1.6 kg
- Material Aluminium
Antenne Horn EMC - Compatibilità elettromagnetica
Richiedi Informazioni

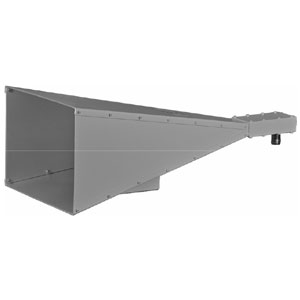

Schwarzbeck HA 9251-48 Pyramidal Standard Gain Horn Antenna
The Schwarzbeck HA 9251-48 Pyramidal Standard Gain Horn Antenna is a linear polarized standard gain horn antenna with coaxial connector (choose N or SC-connector) for highest power handling. The antenna was designed to generate highest fieldstrength at 1 m distance.
