| Number of turns: | 36 | |
| Wire diameter: | 1.26 mm Cu | |
| Maximum coil current: | 10 A (5 min.) | |
| Nominal coil current: | 5 A continuous | |
| Max. magn. field strength: | 1385 A/m (5 min.) | |
| Nominal magn. field strength: | 700 A/m continuous | |
| Magnetic field strength, 1 A coilcurrent: (with 50 mm distance ring): | 138.5 A/m | |
| Current required for 1 A/m: (with 50 mm distance ring) | 7.22 mA | |
| Magnetic field strength, 1 A coil current: (with 100 mm distance ring) | 46.88 A/m | |
| Current required for 1 A/m: (with 100 mm distance ring) | 21.3 mA | |
| Flux density with 50 mA at 50 mm distance: | 138.8 dBpT 136.8 dBµA/m | |
| Inner coil diameter: | 133 mm | |
| Medium coil diameter: | 135.5 mm | |
| Spacing coil center to measurement plane: | 50 mm / 100 mm | |
| Mechanical dimensions: | 0.16 m x 0.25 (0.3) m | |
| Coil terminals: | 4 mm Laborstecker (Standard) oder BNC | |
| Shield: | Electrostatic | |
| Usable frequency range: | 0 – 200 kHz | |
| Inductance: | ≈ 300 μH | |
| Resonance frequency: | >500 kHz | |
| Resistance: | 0.6 Ω | |
| Weight: | 1.1 kg | |
| Standard: | MIL 461 EN 55103 – 2 A.2.1 b) EN 55103 – 2 A.4.1 |
Helmholtz Coil Systems
Richiedi Informazioni

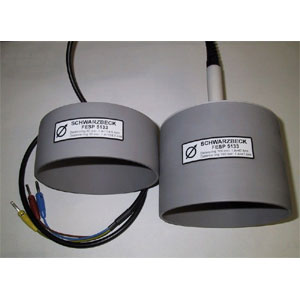

Schwarzbeck Handheld Coil FESP 5133
The magnetic, handheld coil FESP 5133 was designed to generate defined magnetic field strength in the audio frequency range up to 100 kHz. The main application is immunity testing against magnetic fields according to e.g. (of professional studio equipment acc. to EN 55103), MIL-STD 461, VG 95377 part 13) and many others). Depending on the current source characteristics magnetic fields up to 1000 A/m can be generated for a short time.
