| Number of turns: | 6 | |
| Maximum Coil Current: | 40 A (1 min.) 15 A (15 min.) |
|
| Nominal Coil Current: | 12 A continuous | |
| Coil Spacings (centered): | 50 … 80 mm | |
| The following data refers to a coil separation of 60 mm | ||
| Max. Magn. Field Strength: | 2860 A/m (1 min.) | |
| Nominal Magn. Field Strength: | 860 A/m continuous | |
| Magn. Field Strength, 1 A Coil Current: | 71.55 A/m | |
| Coil Diameter: | 120 mm | |
| Mechanical Dimensions: | 290 x 220 x 130 mm | |
| Terminals: | 4 mm female | |
| Inductance (Single Coil): | 8 µH | |
| Inductance (Coil Pair): | 18.7 µH / 50 mm 18.2 µH / 60 mm 17.9 µH / 70 mm |
|
| Usable Frequency Range: | DC – 5 MHz | |
| Resonance Frequency: | > 8 MHz | |
| Weight: | 2.8 kg | |

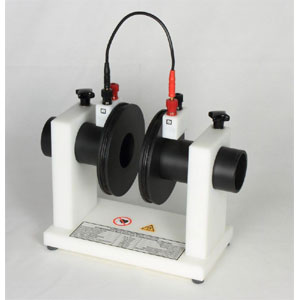

Schwarzbeck HHS 5201-6 Circular Helmholtz Coils
- Helmholtz Coils circular up to 2860 A/m
- 5 MHz for DuT size 45 mm
