| Number of turns: | 98 | |
| Maximum Coil Current: | 40 A (1 min.) 15 A (15 min.) |
|
| Nominal Coil Current: | 12 A continuous | |
| Coil Spacings (centered): | approx. 29 … 95 mm | |
| Max. Magn. Field Strength: | 64 kA/m (1 min.) | |
| Nominal Magn. Field Strength: | 20 kA/m continuous | |
| Magn. Field Strength, 1 A Coil Current: | 1598 A/m | |
| Conversion Current-Fieldstrength: | 64.07 dB/m | |
| Coil Diameter: | 84 mm (58-110 mm) | |
| Free Coil Distance for DuT: | 0 … 66 mm | |
| Mechanical Dimensions: | 240 x 240 x 130 mm | |
| Terminals: | 4 mm female | |
| Inductance (Single Coil): | 0.84 mH | |
| Inductance (Coil Pair): | 2.3 mH / 30 mm 2.0 mH / 50 mm 1.8 mH / 90 mm |
|
| Usable Frequency Range: | DC – 200 kHz | |
| Resonance Frequency: | > 600 kHz | |
| Weight: | 4.1 kg |
Helmholtz Coil Systems
Richiedi Informazioni

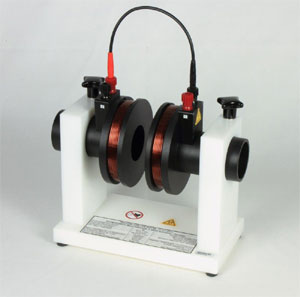

Schwarzbeck HHS 5201-98 Circular Helmholtz Coils
- Helmholtz Coils circular up to 64 kA/m
- 200 kHz for DuT size 45 mm
