| Number of turns: | 12 | |
| Maximum Coil Current: | 60 A (5 min.) | |
| Nominal Coil Current: | 30 A continuous | |
| Coil Spacings: | 200 mm, 250 mm, 300 mm | |
| The following data corresponds to a coil spacing of 200 mm | ||
| Max. Magn. Field Strength: | 2500 A/m (5 min.) | |
| Nominal Magn. Field Strength: | 1288 A/m continuous | |
| Magn. Field Strength, 1 A Coil Current: | 42.93 A/m 152.66 dBµA/m |
|
| Conversion Current->Fieldstrength: | 32.66 dB/m | |
| Coil Diameter: | 400 mm | |
| Mechanical Dimensions: | 0.38 m x 0.58 m x 0.42 m | |
| Terminals: | 4 mm female | |
| Inductance (Single Coil): | 1.20 µH | |
| Inductance (Coil Pair): | 2.40 – 2.60 µH | |
| Usable Frequency Range: | DC – 500 kHz | |
| Resonance Frequency: | >1.4 MHz | |
| Weight: | 10.2 kg | |
Helmholtz Coil Systems
Richiedi Informazioni

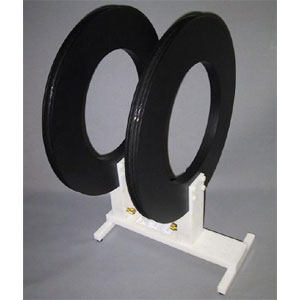

Schwarzbeck HHS 5204-12 Circular Helmholtz Coils
- Helmholtz Coils
- circular
- diam. 400 mm
- 2500 A/m
- 500 kHz
- MIL-STD 461E
