| Number of turns: | 16 | |
| Maximum Coil Current: | 55 A (5 min.) | |
| Nominal Coil Current: | 33 A continuous | |
| Coil Spacings (centered): | 300 mm | |
| Max. Magn. Field Strength: | 2100 A/m (5 min.) | |
| Nominal Magn. Field Strength: | 1260 A/m continuous | |
| Magn. Field Strength, 1 A Coil Current: | 38.17 A/m 151.63 dBµA/m |
|
| Coil Diameter: | 600 mm | |
| Max. Cubical shaped DuT: | 32.5 x 32.5 x 32.5 cm | |
| Mechanical Dimensions: | 0.64 m x 0.79 m x 0.42 m | |
| Terminals: | 4 mm female | |
| Inductance (Single Coil): | 340 µH | |
| Inductance (Coil Pair): | 750 µH | |
| Usable Frequency Range: | DC – 500 kHz | |
| Resonance Frequency: | > 700 kHz | |
| Weight: | 20.4 kg |

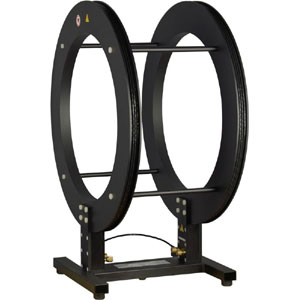

Schwarzbeck HHS 5206-16 Circular Helmholtz Coils
- Circular pair of Helmholtz coils
- diameter 600 mm
- up to 2100 A/m
- max. current 55 A
