| Number of turns: | 10 | |
| Maximum Coil Current: | 20 A (5 min.) | |
| Nominal Coil Current: | 10 A continuous | |
| Max. Magn. Field Strength: | 300 A/m (5 min.) | |
| Nominal Magn. Field Strength: | 150 A/m continuous | |
| Magn. Field Strength, 1 A Coil Current: | 15 A/m (Coil Dist. 0.4 m) | |
| Mechanical Dimensions: | 1.0 x 1.0 x 0.63 m | |
| Coil Separation acc. IEC 1000-4-8: | 0.40 m | |
| Coil Separation for best uniformity: | 0.57 m | |
| Terminals: | 4 mm female | |
| Inductance (per Coil): | 0.36 mH | |
| Usable Frequency Range: | DC – 150 kHz | |
| Resonance Frequency: | > 600 kHz | |
| Weight: | 10 kg |
Helmholtz Coil Systems
Richiedi Informazioni

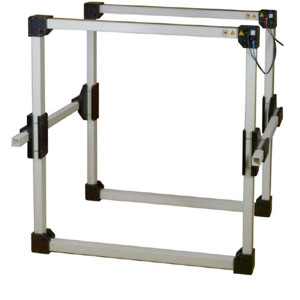

Schwarzbeck HHS 5210-10 Helmholtz Coils
- Helmholtz Coils
- up to 300 A/m constant H field
- 1 m x 1 m
- 10 turns per coil
- EN 61000-4-8, VDE 0847 part 4-8
