| Number of turns: | 50 | |
| Maximum Coil Current: | 8 A (5 min.) | |
| Nominal Coil Current: | 5 A continuous | |
| Max. Magn. Field Strength: | 390 A/m (5 min.) | |
| Nominal Magn. Field Strength: | 240 A/m continuos | |
| Magn. Field Strength, 1 A Coil Current: | 48.5 A/m (coil Dist. 0.75 m) | |
| Coil Separation acc. IEC 1000-4-8: | 0.75 m | |
| Maximum Coil Separation: | 0.82 m | |
| Mechanical Dimensions: | 1.36 m x 1.36 m x 0.9 m | |
| Usable Frequency Range: | DC – 20 kHz | |
| Inductance (per Coil): | 10.5 mH | |
| Resonance Frequency (Pair of Coils): | >30 kHz | |
| Weight: | 18 kg | |
| Terminals: | 4 mm female |
Helmholtz Coil Systems
Richiedi Informazioni

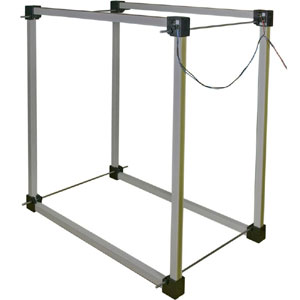

Schwarzbeck HHS 5213-50 Helmholtz Coils
- Helmholtz Coils
- 1.25 m x 1.25 m
- 50 turns per coil
- acc. EN 55103-2 A.2.1.b)
