| Number of turns: | 10 | |
| Maximum Coil Current: | 20 A (5 min.) | |
| Nominal Coil Current: | 10 A continuous | |
| Max. Magn. Field Strength: | 200 A/m (5 min.) | |
| Nominal Magn. Field Strength: | 100 A/m continuos | |
| Magn. Field Strength, 1 A Coil Current: | 9.96 A/m (coil Dist. 0.6 m) | |
| Coil Separation acc. IEC 1000-4-8: | 0.6 m | |
| Maximum Coil Separation: | 0.86 m | |
| Mechanical Dimensions: | 1.5 m x 1.5 m x 0.9 m | |
| Usable Frequency Range: | DC – 100 kHz | |
| Inductance (Coil pair): | 1.3 mH | |
| Resonance Frequency (Pair of Coils): | >400 kHz | |
| Weight: | 14 kg | |
| Terminals: | 4 mm female |
Helmholtz Coil Systems
Richiedi Informazioni

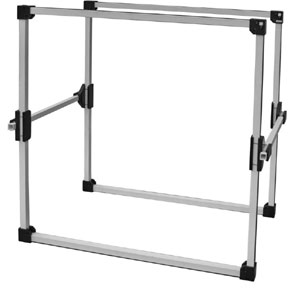

Schwarzbeck HHS 5215-10 Helmholtz Coils
- Helmholtz Coils
- up to 200 A/m constant H field
- 1,5 m x 1,5 m
- 10 turns per coil
