| Topology: | V-LISN |
| Frequency Range: | 9 kHz – 30 MHz |
| Pre-filter choke: | 250 µH |
| Impedance simulation: | 50 O || (50 µH + 5 O) |
| Max. Current IEC 60309: |
4 x 32 A |
| Max. Current CEE 7/4 socket: | 16 A |
| max. Voltage: | 250 VAC 50/60 Hz 400 VDC |
| Supply cable: | hard-wired five-wire connection cable with CEE plug (IEC 60309) |
| Connector for EuT: | CEE 7/4 Type F (Schuko) socket and IEC 60309 3L+N+PE 32 A CEE socket |
| Connector for “artificial hand”: | 4 mm laboratory socket with screw terminal 6 mm, not removable |
| Connector to EMI-receiver: | BNC socked, 50 O |
| Length: | 470 mm |
| Width: | 450 mm |
| Height: | 370 mm |
| Weight: | 34.2 kg (38.5 kg RC) |
| Standard: | CISPR 16-1-2 |
Line Impedance Stabilization Networks (LISN)
Richiedi Informazioni

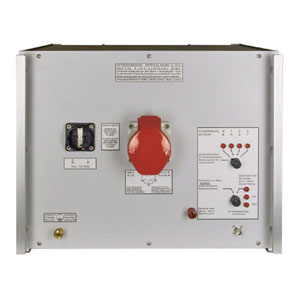

Schwarzbeck NSLK 8128 V-Line Impedance Stabilisation Network
Opt. RC: Option RC for LISN: Remote Control with built in power supply. LISN can be controlled by R&S or Schwarzbeck code, including remote control cable for your receiver type (Please specify your receiver type!). LISN can be selected from the R&S receiver menu or in the EMC32 software like an R&S LISN. No programming of the user interface necessary. Functions: path selection and PE grounded or via choke.
