Teseq MD 4070 – Dispositivo di Monitoraggio, 4 kHz – 400 MHz

Monitoring Device 10 kHz to 400 (600) MHz

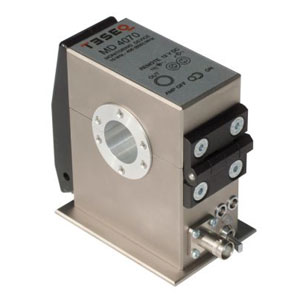

The monitoring device MD 4070A can be used as an active or passive current sensor probe to measure the current in a conductor without connecting it directly. The MD 4070A allows fast and easy measurement as it can be quickly clamped around the current carrying conductor.
The MD 4070A is characterized over the frequency range from 4 kHz to 400 MHz. The MD 4070A can be used for the procedure for clamp injection when the common-mode impedance requirements cannot be met given in chapter 7.4 of IEC / EN 61000-4-6 „Immunity to conducted disturbances, induced by radio frequency fields”. The MD 4070 can also be used as current monitor for BCI testing as per ISO 11452-4, RTCA / DO-160 section 20, MIL-STD-461 CS114 (including version “G“) and various automotive standards.

Teseq MD 4070 - Dispositivo di Monitoraggio, 4 kHz – 400 MHz
Teseq MD 4070 - Dispositivo di Monitoraggio Datasheet
Category: Tags: ,
Richiedi Informazioni
  • Frequency range: 4 kHz to 400 MHz
  • Transmission S21 (passive mode):
    • typical -22 dB ±3 dB
    • (50 O system, 100 kHz to 230 MHz)
  • Transmission S21 (active mode):
    • typical +10 dB ±3 dB
    • (50 O system, 100 kHz to 100 MHz)
  • Transfer impedance: see graph for typical values (datasheet)
  • Signal output: BNC socket
  • Max. signal current: 1 A
  • As required in IEC/EN 61000-4-6
  • Suitable for BCI testing per ISO 11452-4, RTCA/DO-160 section 20, MIL-STD-461 and various automotive standards
  • Active/passive operation for wide dynamic range
  • Suitable for NSG 4070
  • Ruggedly designed
