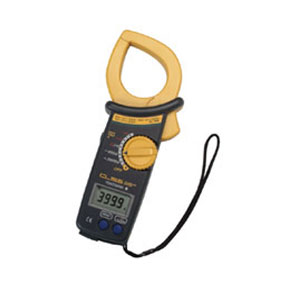

Yokogawa 155 Pinza Amperometrica, AC, True RMS, 2000A

Yokogawa CL155 Pinza Amperometrica, AC, True RMS, 2000A

AC TRUE RMS CLAMP-ON TESTER FOR AC CURRENT

CL Series consists of AC, AC/DC, and leakage current clamps with various ranges and dimensions. The multiple options include RMS, Mean, Temperature, frequency, and recorder output.

Yokogawa 155 Pinza Amperometrica, AC, True RMS, 2000A
Yokogawa 155 Pinza Amperometrica DatasheetYokogawa 155 Pinza Amperometrica Datasheet English Version
Category: Tags: ,
Richiedi Informazioni
  • AC current measurement with current ranges up to 2000A
  • AC/DC voltage and resistance measurements
  • True RMS display
  • 54mm in diameter of measurable conductor
  • DC output function
  • Data hold function
  • Sleep function
  • Approved for conformity to safety standards EN61010-1, EN61010-2-031, EN61010-2-032 (CAT. HI 600 V, CAT. II1000 V)

SPECIFICATIONS

  • Display (LCD, Digital Counts)
    • 3999
  • AC Current Accuracy (400A Reference)
    • 1.0+3(50/60Hz)
    • 2.0+3(40~1kHz)
  • AC Current Accuracy (2000A Reference, 0~1500A)
    • 2.0+3(50/60Hz)
    • 3.0+3(40~1kHz)
  • AC Voltage Accuracy (40/400V/750V Reference)
    • 1.0+2(50/60Hz)
    • 1.5+3(40~1kHz)
  • DC Voltage Accuracy (40/400V/1000V Reference)
    • 1.0+2
  • Resistance Accuracy (400/4k/40k/400kΩ reference)
    • 1.5+2, Beeps at below 50± 35Ω (continuity check)
  • DC Output Accuracy (400A, 0~400mV Reference)
    • ۫.5% rdg ± 0.5mV (50/60Hz)
    • ۬.5% rdg ± 0.5mV (40~1kHz)
  • Method of detection
    • True RMS
  • Response Time
    • Approx. 2 seconds
  • Range Switching
    • Manual-range (on AC current range) / Auto-range (on AC voltage range, resistance range)
  • Operating temperature and humidity
    • 0-40°C, 85% RH or less (no condensation)
