Yokogawa 700924 Sonda differenziale

Yokogawa 700924 Sonda differenziale, 1400V / 100 MHz

DIFFERENTIAL PROBE 100 MHZ/1400 V

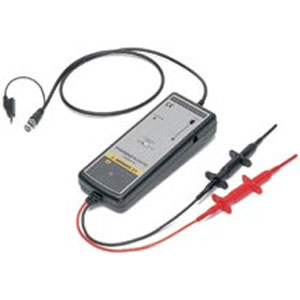

La sonda differenziale 700924 consente di effettuare misurazioni dell’ingresso differenziale a larga banda (100 MHz). Basta collegare la sonda all’ingresso di un oscilloscopio digitale con ingresso single-end.

Yokogawa 700924 Sonda differenziale
Yokogawa 700924 Sonda differenziale Datasheet
Category: Tags: ,
Richiedi Informazioni
Input type Balanced differential input
Frequency band DC up to 100 MHz (-3 dB)
Input attenuation ratio Switched between 1/100 and 1/1000
Input impedance Approximately 4 MΩ, approximately 10 pF parallel
Gain accuracy ±2% (common mode voltage: 400 V or less) ±3% (common mode voltage: 1000 V or less)
Maximum allowed differential voltage ±350 V (DC + ACpeak) or 250 Vrms (1/100 range) ±1400 V (DC + ACpeak) or 1000 Vrms (1/1000 range)
Maximum common mode input voltage ±1400 V (DC + ACpeak) or 1000 Vrms (both 1/100 and 1/1000 ranges)
Maximum input voltage ±1400 V (DC + ACpeak) or 1000 Vrms (1/1000 range)
Common Mode Rejection Ratio (CMRR) -80 dB (60 Hz), -50 dB (1 MHz)
Output voltage ±3.5 V
Output impedance Used with 1 MΩ input impedance
Power supplies Dry cells, four R6P (SUM-3); when using the AC/DC adapter, use an output voltage of 6 V/200 mA or greater/center plus
Dry cell life Approximately 2 hours under continuous use
External dimensions (approximate) 207 mm x 83 mm x 38 mm¹
Total length Approximately 1.5 meters
Weight Approximately 800 grams (excluding dry cells)
Approved standards EMC: EN55011: 1991 + A1: 1997 + A2: 1996 EN50082-1: 1992 Safety: EN61010-1: 1993 + A2: 1995 EN61010-2-031: 1994
