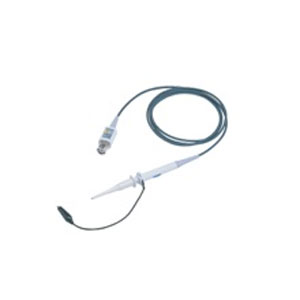

Yokogawa 701940 Sonda Passiva

Yokogawa 701940 Sonda Passiva, 600V / 10 MHz

10 MHZ PASSIVE PROBE

Passive Probe, 600Vpeak, 6MHz/10MHz, 1:1, 10:1, 1MΩ/10MΩ, 1.5m ‘600V Non-Isolated’. Typically used for non-isolated ScopeCorder module 701255 on the Dl850/DL850V/DL750/DL750P/SL1400/SL1000.

Yokogawa 701940 Sonda Passiva, 600V / 10 MHz
Yokogawa 701940 Sonda Passiva
Categoria: Tag: ,
Richiedi Informazioni
  • Bandwidth: DC to 10MHz (-3dB, 1/10)
  • Attenuation Ratio: 1:1 or 10:1 switchable
  • Input resistance: 1MΩ or 10MΩ
  • Input capacitance: 17pF -to- 200pF
  • Compensation Range: 22pF or 200pF
  • Rise Time: 35ns / 58ns
  • Max. input voltage: 600V (DC + ACpeak, non-isolated input)
  • Probe Length (coax): 1.5 meter
  • Standard accessories include: ground lead, pinchers tip, IC test tip, ground attachment, marker tip
