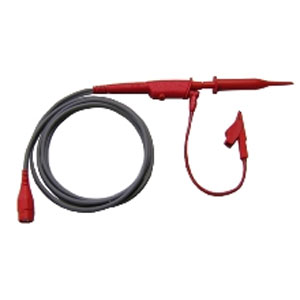

Yokogawa 701947 Sonda, 1000V / 200 MHz

Yokogawa 701947 Sonda, 1000V / 200 MHz

100:1 ISOLATED PROBE

Passive Probe, 3540Vp-CAT I, 1000Vp-CAT II, 200MHz, 100:1, 100MΩ, 1.5m, ‘Isolated Probe’  ‘Iso-Probe’.  For use with 701250, 701251, 701260, 701280, 701281, 720210 isolated-input modules ONLY.  For use with DL850 series, DL750/DL750P, SL1400, and SL1000.  Not for use with CAT III or CAT IV measurements.

Yokogawa 701947 Sonda, 1000V / 200 MHz
Yokogawa 701947 Sonda Datasheet
Category: Tags: ,
Richiedi Informazioni
  • Bandwidth: DC to 200MHz (-3dB)
  • Attenuation ratio: 100:1
  • Connector Type: BNC
  • Input Resistance: 100MΩ
  • Input Capacitance: 7pF
  • Compensation Range:
  • Rise Time: 1.2ns
  • Maximum input voltage, Space Between Shield and Earth:
    • +/-1,000V (DC + ACpeak) CAT II
    • +/-1,000V (DC + ACpeak) CAT I
  • Maximum input voltage, Space Between Tip and Shield:
    • +/-1,000V (DC + ACpeak) CAT II
    • +/-3,540V (DC + ACpeak) CAT I
  • Cable length: 1.5m
  • Standard accessories included: One ach, B8073ZF Safety Plug-On Clip (high-side pincher), and  B8074ZG Safety Clip Lead (low-side)
  • Safety Rating (Probe Alone): EN61010-031:2002, CAT I and II Only.
