| Power Supply | 6 AA size alkaline batteries AC adapter (sold separately) AC adapter specification: 100 to 240 VAC, 50/60 Hz, 1.4 A Dedicated NiMH battery (sold separately) OUTPUT: 12 VDC, 3 A |
|---|---|
| Auto power-off | Approx. 10 minutes; it can be canceled by setting. |
| Operating Temperature/Humidity Range | 0 to 40°C, 20 to 80 % RH (no condensation) |
| Storage Temperature Range | -20 to 60°C 90%RH or less (no condensation) |
| External Dimensions | 251 x 124 x 70 mm |
| Weight | Approx. 1000 g |
| Conforming Standards Safety | Softy EN61010-1 EMC EN 61326 Class B;EN 55011 Class B Group1 EN 61000-3-2; EN 61000-3-3, EN61326 |
Calibrazione
Richiedi Informazioni

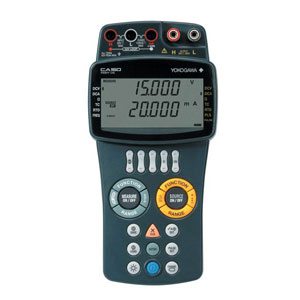

Yokogawa CA150 Calibratore
Highly accurate within 0.02% of the DC voltage range for source and measure. Source and measurement can be performed simultaneously. Vertical type with large-screen display.Loop power supply function (24 VDC at a load of up to 22 mA) It is possible to measure current in the mA range while supplying power. Sink function. Sweep functions that allow 3 types of continuous outputs.
