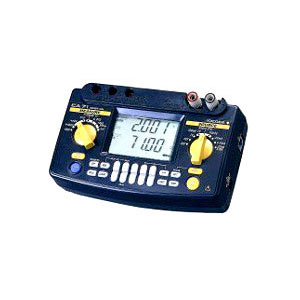

Yokogawa CA71 Calibratore Multifunzione

Yokogawa CA71 Calibratore Multifunzione

Simultaneous signal source and measurement capacity, a wide array of useful functions, Easy operation, Online communication function.

Yokogawa CA71 Calibratore Multifunzione
Yokogawa CA71 Calibratore Multifunzione DatasheetYokogawa CA71 Calibratore Multifunzione Datasheet Versione Inglese
Category: Tags: ,
Richiedi Informazioni
  • Auto-Step Output Function: n value sent automatically when n/m function selection is selected (two options: approximately 2.5 seconds/step or approximately 5 seconds/step)
  • Sweep Functions: Sweep time (two options: approximately 16 seconds or approximately 32 seconds)
  • Memory Function: 50 value sets (generated and measured values are stored as value sets with the same address (up to 50 value sets can be stored))
  • Measuring Unit Maximum Input: Voltage terminal: 300 V AC Current terminal: 120 mA DC
  • Current Terminal Input Protection: Fuses: 125 mA/250 V
  • Measuring Unit Ground Voltage: Maximum 300 V AC
  • Measurement Display Updating Rate: Approximately once per second
  • Serial Interface: Enabled when communication cable (RS232) is connected; sold separately as optional accessory
  • Display: Segmented LCD (Approx. 76 mm × 48 mm)
  • Backlight: LED backlight; auto-off after one minute (from when LIGHT key is turned on)
  • Power Supply: Four AA alkaline batteries, or special AC adapter (sold separately)
  • Battery Life: Measurement off, output 5 V DC/10 kO or greater: Approximately 40 hours Simultaneous signal generation/measurement, output 5 V DC/10 kO or greater: Approximately 20 hoursSimultaneous signal generation/measurement, output 20 mA/5 V: Approximately 12 hours (using alkaline batteries, with backlight off)
  • Auto-Power-Off Function: Approx. 10 minutes (auto-power-off can be disabled through a DIP switch setting)
  • Applicable Standard: EN55011: 1998, Class B, Group 1; EN61326-1: 1997 + A1: 1998; IEC61010-1, IEC61010-2-31
  • Insulation Resistance: Across input terminal and output terminal, 500 V DC, 50 MO or greater
  • Withstand Voltage: Across input terminal and output terminal, 3.7 kVAC, for one minute
  • Operating Temperature And Humidity Ranges: 0 – 50°C, 20 – 80% RH (no condensation)
  • Storage Temperature And Humidity Ranges: -20 – 50°C, 90% RH or less (no condensation)
  • External Dimensions: Approx. 190 × 120 × 55 mm
  • Weight: Approx. 730 g (including batteries)
